Fenix LD12R – 600 Lumens USB-C Rechargeable EDC Torch

Operations

On/off

Fully press the tail switch to turn on or turn off the flashlight.

Mode switching

With the light switched on, loosen the light head until the light goes off, then tighten the light head again to switch the lighting mode.

Output Selection

Main light: With the light switched on, tap the tail switch to cycle through Moonlight→Low→Med→High.

Side light: With the light switched on, tap the tail switch to cycle through Low→Med→High.

Intelligent Memory Circuit

The main light memorizes the last selected output. With the light switched off for over 1 second, turn on the light again and the previously used output will be recalled.

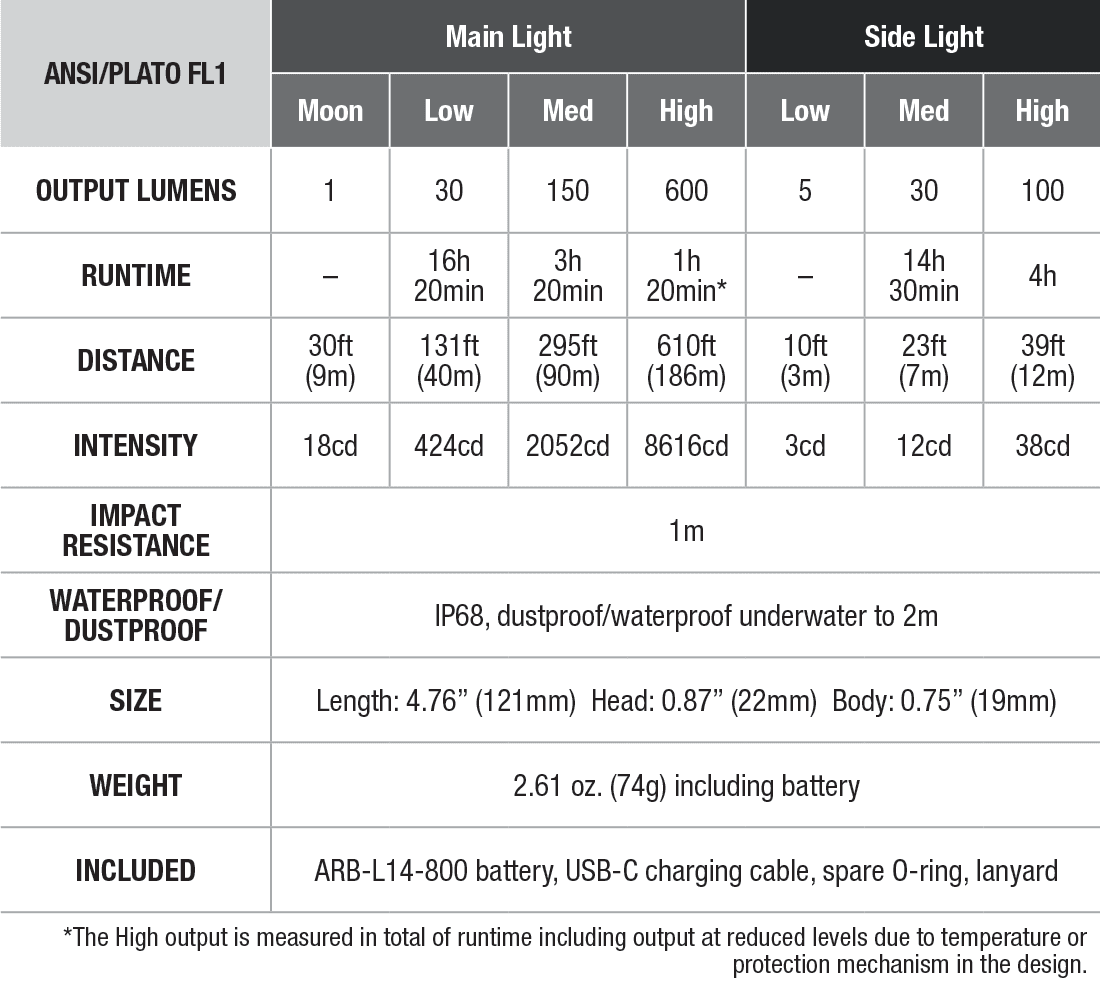

Battery Specifications

*14500 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only using quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are considered user induced damage and are not covered by any Fenix warranty or liability.

**The high output of main light mode cannot be operated while using the AA battery.

Battery Replacement

Unscrew the tail cap and insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

Charging

1. Loosen the light head to reveal the USB Type-C charging port and plug the USB A socket of the charging cable into an approved USB powered outlet, then connect the USB Type-C socket of the charging cable to the light.
2. The indicator will display red while charging, and will turn to green when fully charged.
3. Once charging has completed, be sure to tighten the light head to maintain the dustproof and waterproof functionality.
4. The normal charging time of the included Fenix ARB-L14-800 battery is approximately 2 hours from depleted to fully charged. The flashlight cannot be operated while charging.

Battery level indication

Loosen the light head to reveal the battery indicator. Press the switch, the battery indicator will flash for 3 seconds to show the remaining battery power.

Green light on: saturated 100% – 85%

Green light flashes: sufficient 85% – 50%

Red light on: poor 50% – 25%

Red light flashes: critical 25% – 1%

Note: This feature only works with a Fenix ARB-L14 Series 14500 battery.

Intelligent Overheat Protection

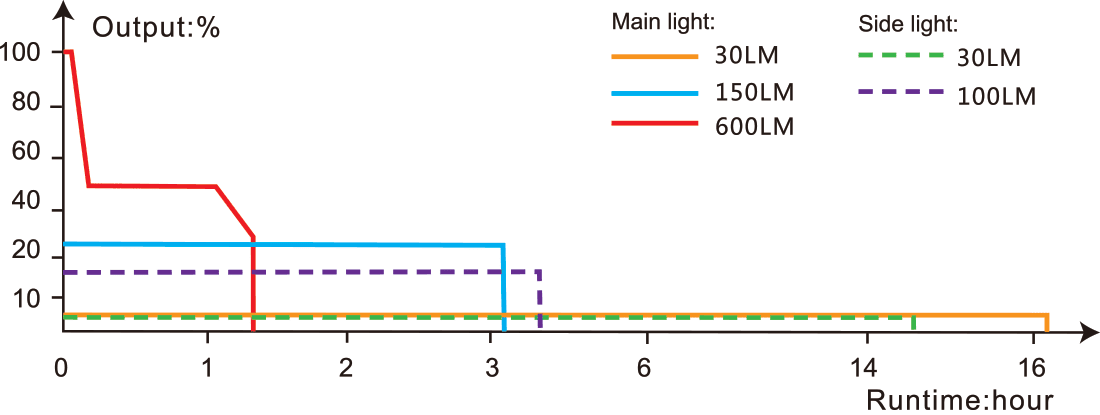

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. The light will automatically step down a few lumens to reduce the temperature to a safe level when this situation occurs.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Moonlight output is reached. When Moonlight output is reached, the light blinks 3 times every 5 minutes to remind you to recharge or replace the battery.

Note: This feature only works with a Fenix ARB-L14 Series 14500 battery.

Usage and Maintenance

• Disassembling the sealed head can cause damage to the light and will void the warranty.
• Fenix recommends using an excellent quality battery.
• If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
• Remove the battery to prevent accidental activation during storage or transportation.
• Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare．
• Periodic cleaning of the battery contacts improves the lamp’s performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:
  A: Poor battery level.
  Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer’s specifications).
  B: The threads, PCB board contact or other contacts are dirty.
  Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

Warning

• DO NOT place this flashlight in the reach of children!
• Do NOT shine the flashlight directly into the eyes of anyone!
• Do NOT place light head near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
• Do NOT use the flashlight in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the flashlight or internal battery fails!
• This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the flashlight shell. Pay close attention to avoid burns.
• Remove the battery from the flashlight to prevent accidental activation when the flashlight is placed in a closed-in and flammable environment such as pockets and backpacks!
• The LED of this flashlight is not replaceable; so the whole flashlight will need to be replaced when the LED reaches the end of its lifespan.
